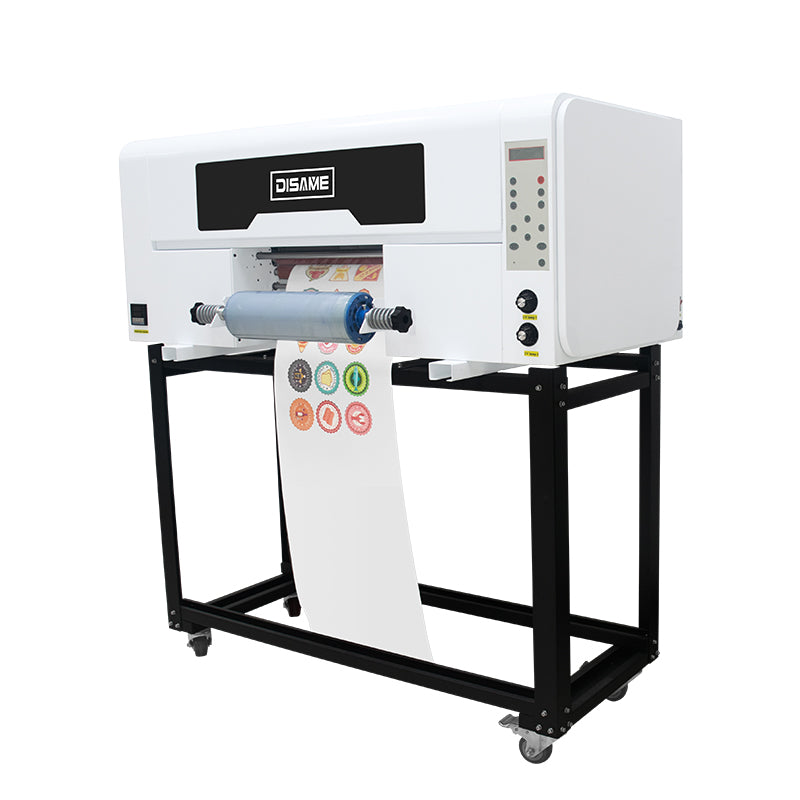

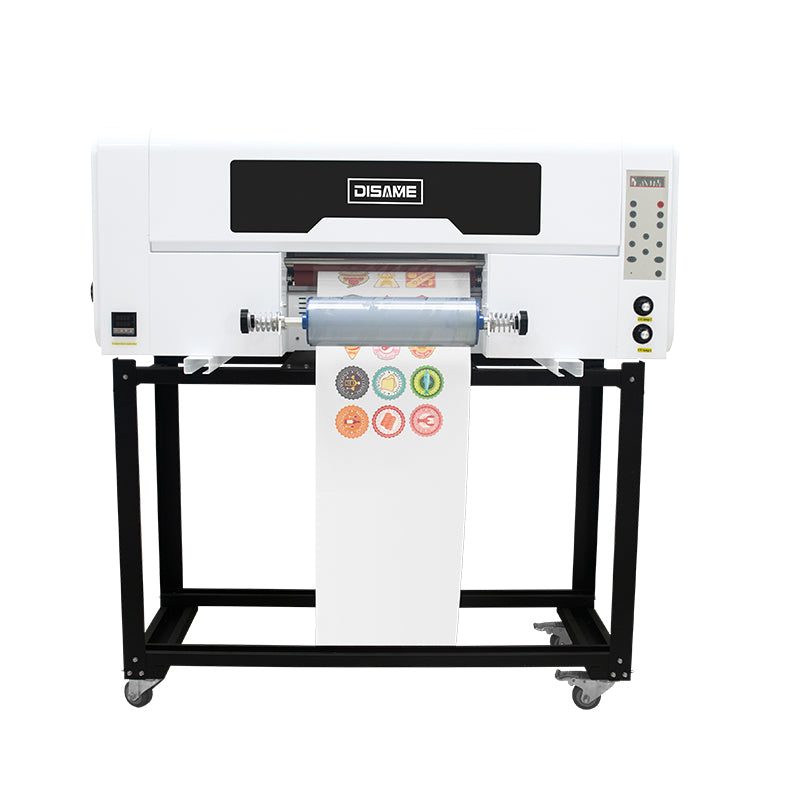

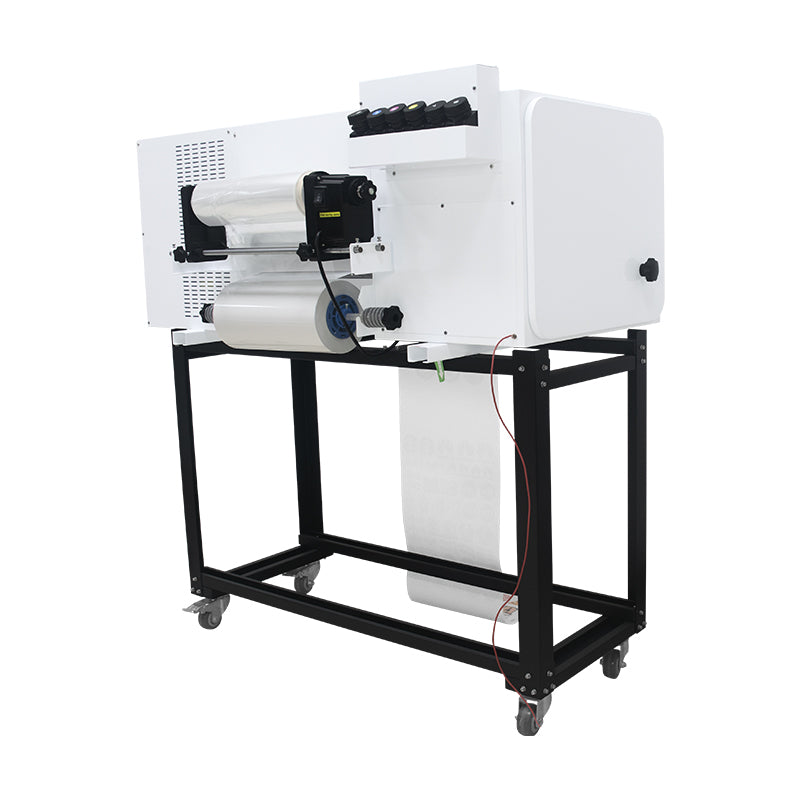

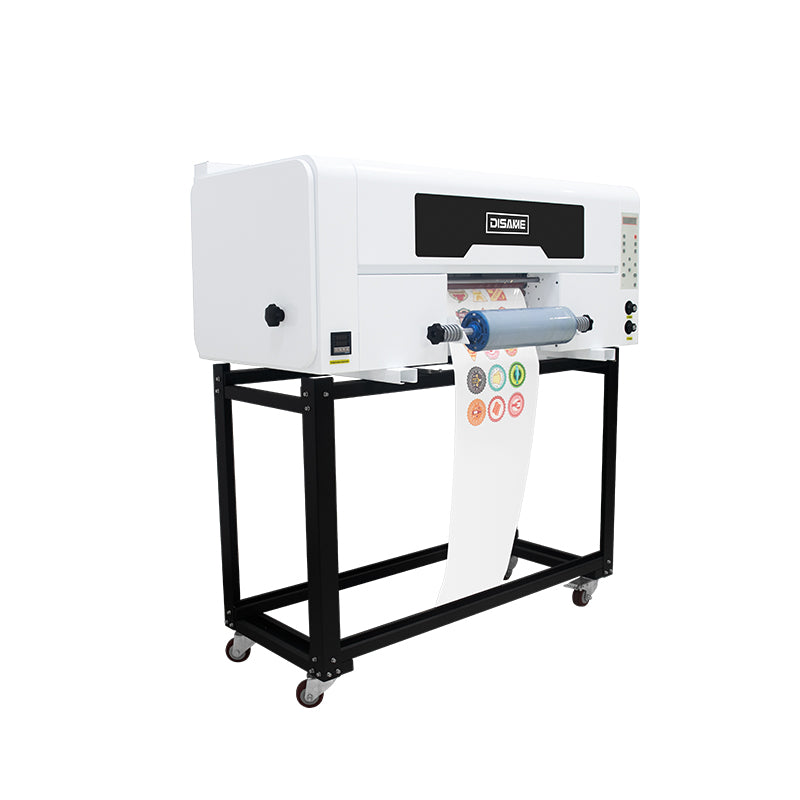

A3 UV DTF Printer XP600 Glass Bottle laminator UV Printer
Multi-functional self-adhesive label printer, suitable for a wide range of materials, glass, ceramic, copper, aluminum, iron, plastic, PVC, wood, acrylic and other materials can be pasted. Paste can be torn off, no need to wait, uv transfer paste, fast and convenient to achieve your brand promotion.
|
Product model |
|
|
Sprinkler model |
XP600 |
|
Number of nozzles |
2pcs (optional 3pcs) |
|
Print speed |
4PASS 3m/H 6PASS 2m/H 8PASS 1.5m2/H |
|
Print medium |
crystal label AB film/sticker |
|
Print interface |
Gigabit network interface |
|
PRINTING HEIGHT |
0-20MM |
|
MEDIA WIDTH |
0-300MM |
|
Input power |
220V/110V |
|
INK SUPPLY SYSTEM |
INK SHORTAGE ALARM SYSTEM 500ML |
|
Curing system |
LED curing lamp |
|
RIP software |
Maintop 6.1, PP, PT |
|
File formats |
PDF, JPEG, TIFF, etc |
|
Machine net weight |
70KG |
|
MACHINE SIZE |
1150*720*520MM |
|
Packing size |
1180*750*650MM |
|
Adapt to the industry |
crystal label, label, sticker |
Working process
1.Import customized patterns, logos or texts into the matching printing software, and adjust printingL.parameters according to production requirements
2. Install professional UV DTF AB film on the feeding shaft of the printer, and calibrate the material feedingposition.
3. Start the printing task, the machine will print patterns on the A fim automatically, and the UV lamp curesink instantly during printing.
4. After printing, the equipment finishes automatic laminating B film in one step, no manual laminationneeded, greatly saving working time.
5. Cut the finished integrated crystal labels, then you can directly transfer the stickers to various products viacold transfer process.
