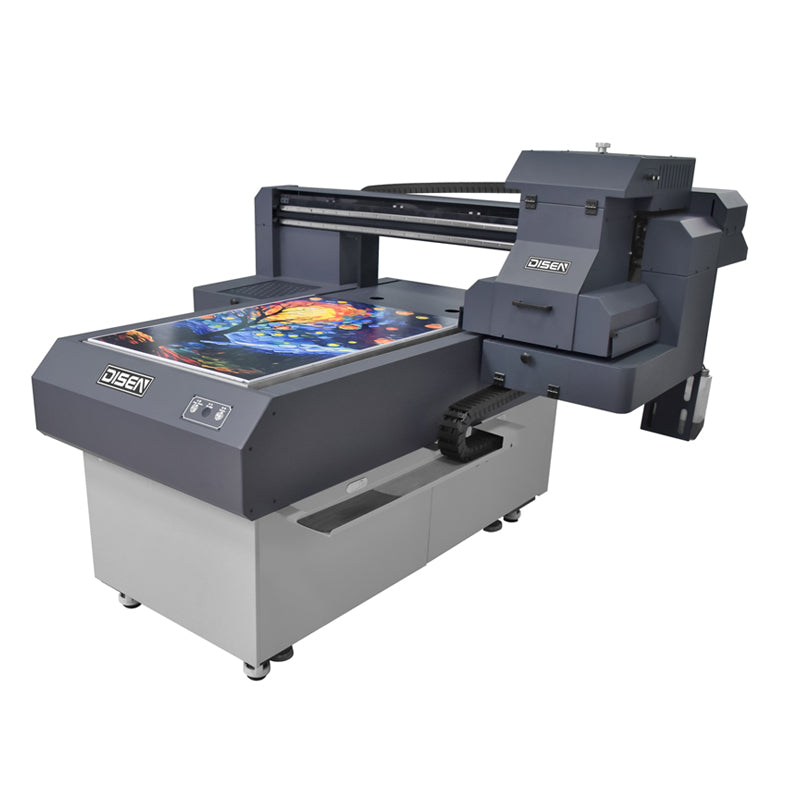

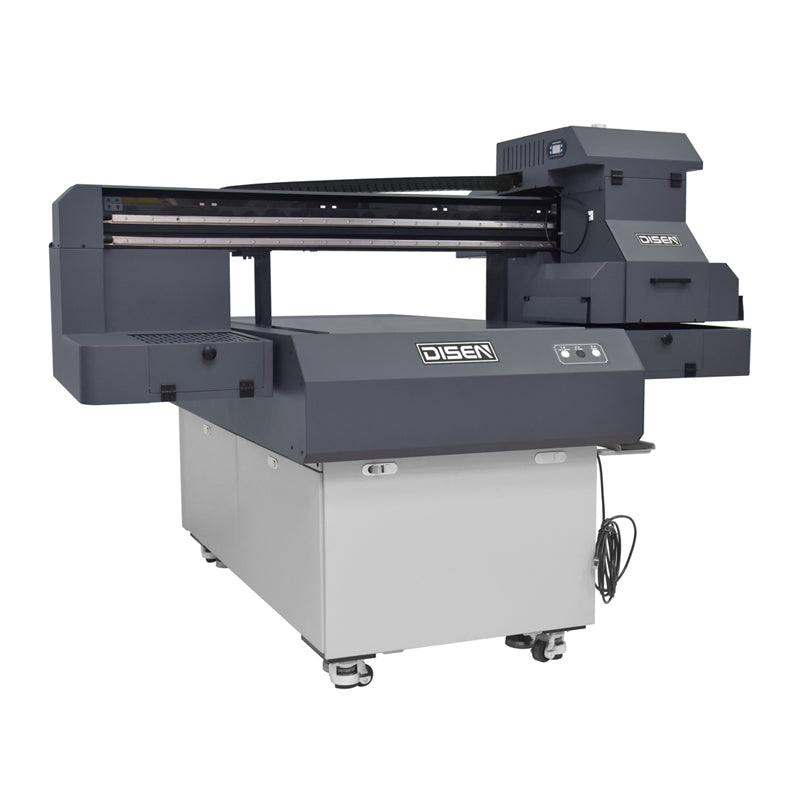

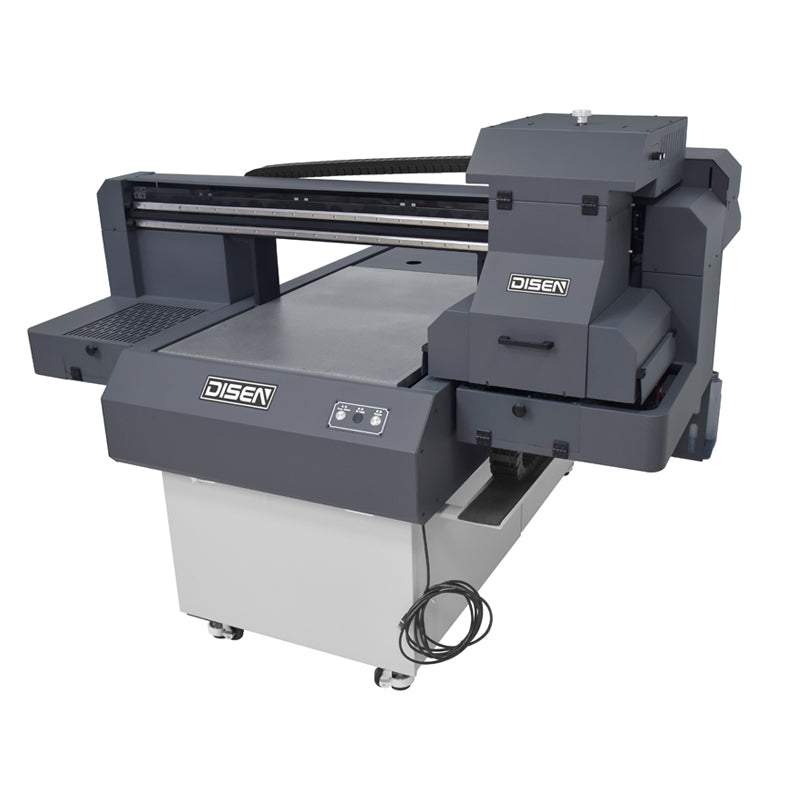

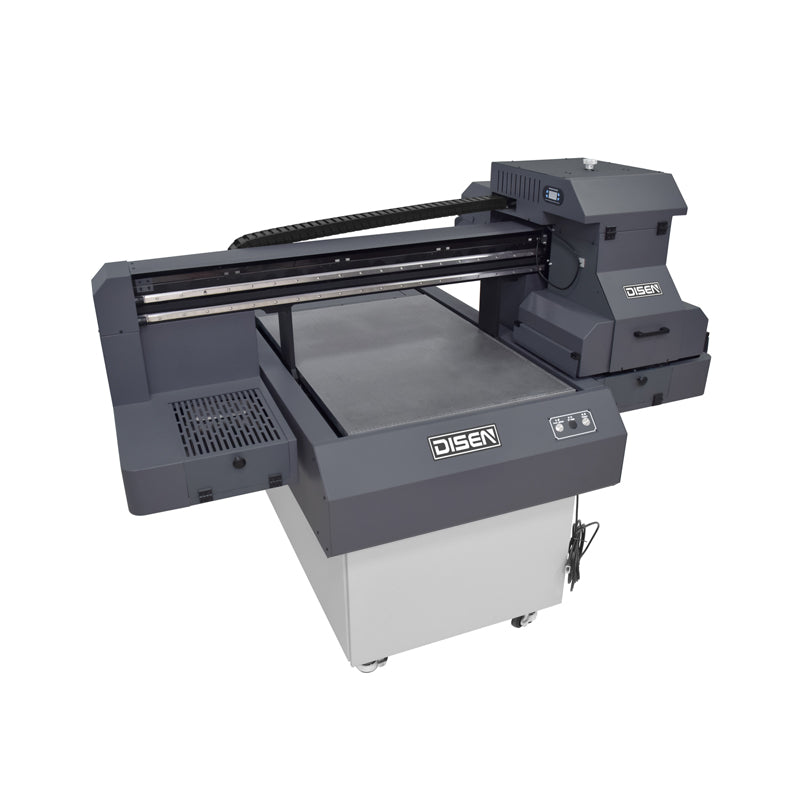

Digital 6090 UV printer Phone case KT board Bottle printing
Digital 6090 UV printer Phone case KT board Bottle printing
large format 6090 UV Flatbed printing,It utilizes advanced UV printing technology to ensure vibrant colors, sharp details, and long-lasting prints.Whether it's wood, KT board, rock drawing board, bottles, plastic, acrylic, metal, or other surfaces, this printer delivers excellent results.
|
DS-M-690-XP600(2-4 head)/i3200(2head) |
|||
|
Mainboard |
Honson mainboard |
||
|
Appearance |
Black grey+Medium grey |
||
|
Print head |
|||
|
Rail |
Single rail |
||
|
Color |
CMYK+Lc+Lm+White+varnish |
||
|
Printing speed （sqm/h） |
dpi |
XP600 |
I3200 |
|
720x600dpi(4pass) |
10㎡/h |
||
|
720x900dpi(6pass) |
3㎡/h |
8㎡/h |
|
|
720x1200dpi(8pass) |
2㎡/h |
6㎡/h |
|
|
Flatbed size |
|||
|
Print thicknes |
0.1-250 |
||
|
Curing system |
LED UV Lights |
||
|
Image Format |
TIFF/JPG/EPS/PDF/BMP |
||
|
Rip software |
Photoprint/maintop/riin rip-honson |
||
|
Power supply |
AC220V 50HZ±10% |
||
|
Temperature |
20-32℃ |
||
|
Humidity |
40-75% |
||
|
Power |
750w |
||
|
Appearance size |
L/W/H:1850/1600/1450 |
||
|
Data transmission |
TCP/IP network interface |
||
|
350KG |
|||
|
Wooden box size |
1900x1650x1500mm |
||
|
Suction system |
280W brand fans |
||
|
Y-axis |
Servo motor drive |
||
|
Lead screw |
Double Y screw |
||
|
Automatic height measurement |
The system drives the automatic height measurement function |
||
How to Use
1.Preparation
Place the printer in a 15–30℃ environment. Connect power (110V/220V) and gigabit network. Prepare UV ink, materials, and design files (JPG/TIFF/PDF).
2.Material Placement
Clean and place materials on the suction platform; turn on suction to fix them firmly. The system auto‑detects thickness and adjusts height via intelligent lift.
3.Visual Positioning
Launch the camera scanning function. The printer automatically identifies material boundaries and locates the printing area. Import patterns in the RIP software (Maintop/PhotoPrint) without manual alignment.
4.Print Settings
Select print pass (6/8/12 PASS), speed, and color mode. Set white ink stirring, varnish, and curing parameters as needed.
5.Printing & Curing
Start printing. The UV LED system cures ink instantly for dry‑to‑touch results. The machine supports pause and resume without wasting media.
6.Finishing
Once completed, take out the printed products. Patterns are scratch‑resistant, waterproof, and highly adhesive.
