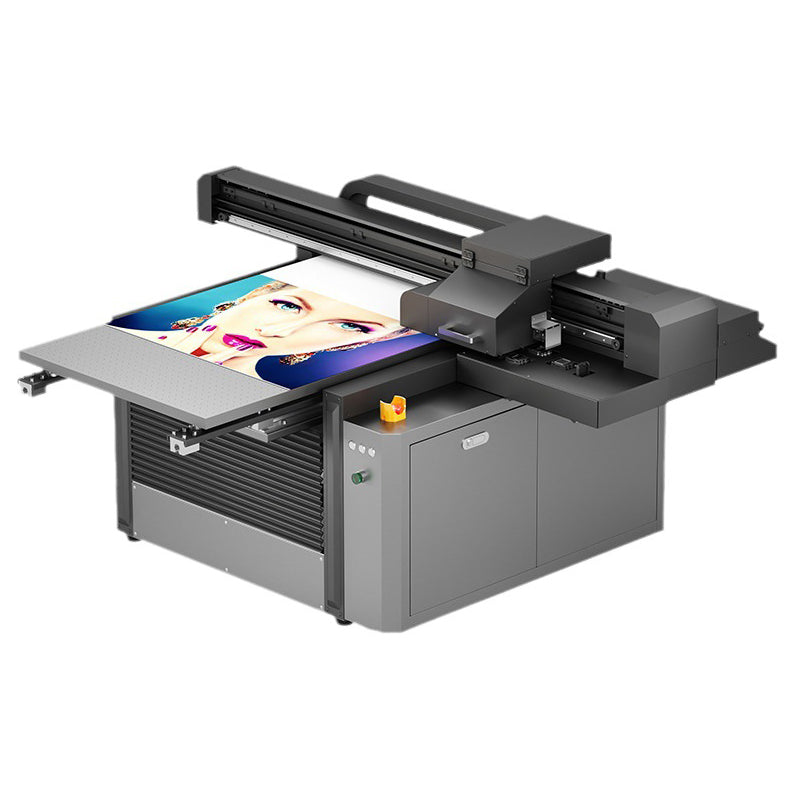

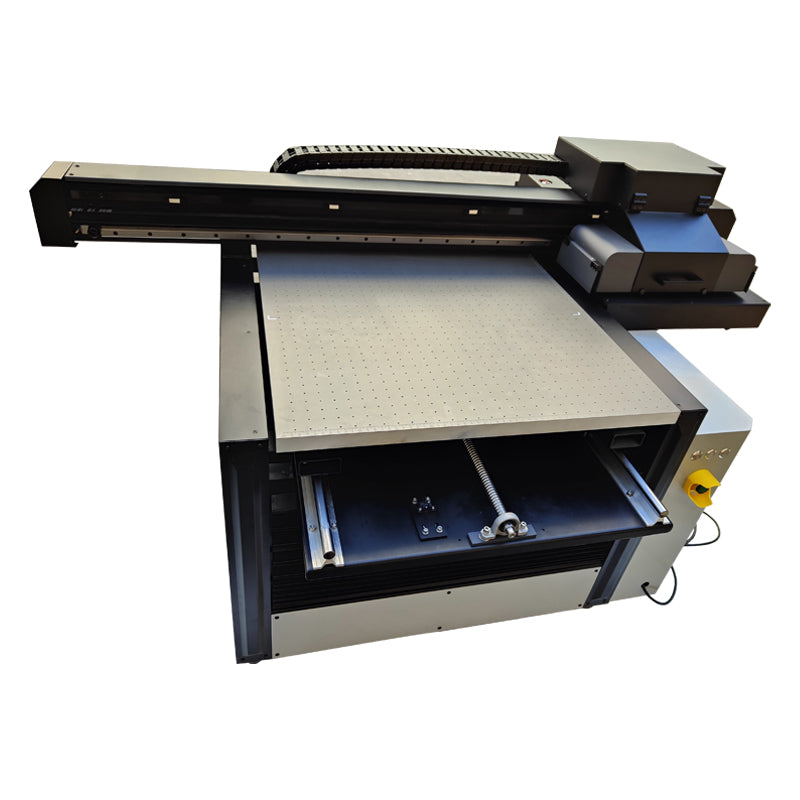

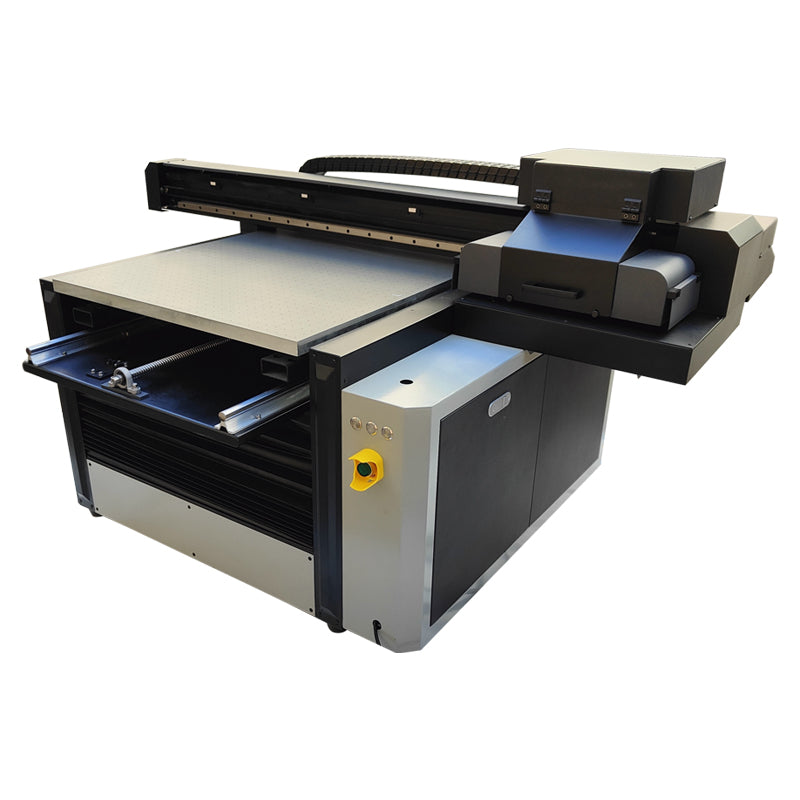

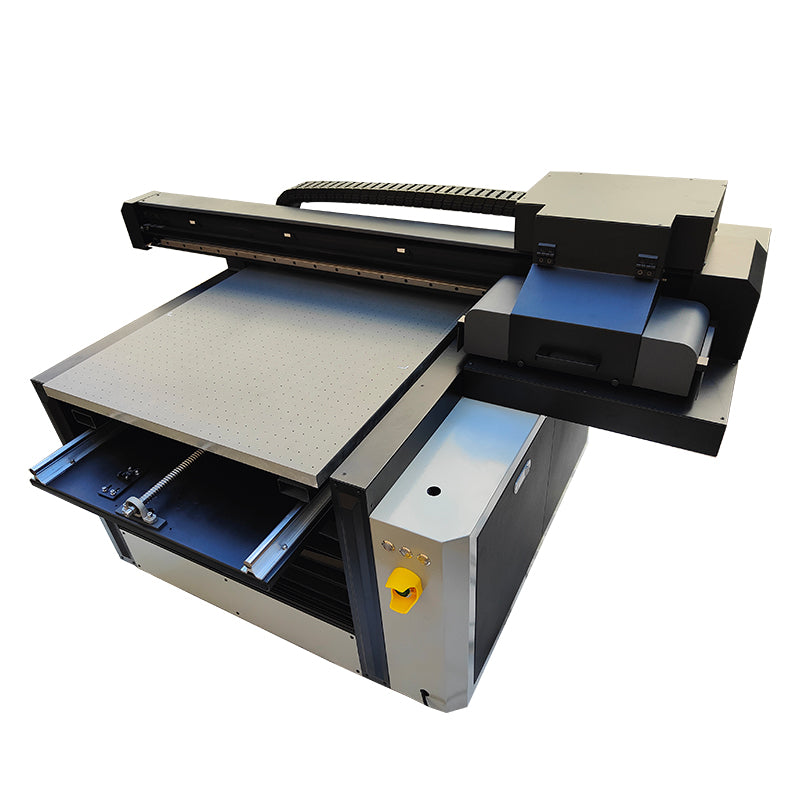

Industrial Acrylic wood Large Format Uv Flatbed Printer 60*90 A1 Uv inkjet Printer
Industrial Acrylic wood Large Format Uv Flatbed Printer 60*90 A1 Uv inkjet Printer
Multi-function uv Printer with XP600/i3200 print head for high speed pattern printing. It can be applied to Exhibition display/Background wall/Wood printing/Metal products/KT board/Acrylic Labels. Use LED cold temperature curing technology,longer service life,lower energy consumption.
|
Model |
M-9060-i3200U/XP600/G5i |
|||
|
Mainboard |
Honson mainboard |
|||
|
Appearance |
Black grey+Medium grey |
|||
|
Print head |
Epson i3200U/XP600（1-4）Ricoh G5i |
|||
|
Color |
CMYK+Lc+Lm+White+varnish |
|||
|
Printing speed （sqm/h） |
dpi |
GEN5i |
I3200U |
XP600 |
|
720x600dpi(4pass) |
4㎡/h |
10㎡/h |
4㎡/h |
|
|
720x900dpi(6pass) |
3㎡/h |
8㎡/h |
3㎡/h |
|
|
720x1200dpi(8pass) |
2㎡/h |
6㎡/h |
2㎡/h |
|
|
Flatbed size |
940x640mm |
|||
|
Print thicknes |
Plate Printing thicknes 0.1~380mm Cylinder print diameter 20mm~200mm（UItra-high customizable） |
|||
|
Curing system |
LED UV Lights |
|||
|
Image Format |
TIFF/JPG/EPS/PDF/BMP |
|||
|
Rip software |
Photoprint/maintop/riin rip-honson |
|||
|
Negative pressure |
White and color separate negative pressure |
|||
|
Power supply |
AC220V 50HZ±10% |
|||
|
Temperature |
20-32℃ |
|||
|
Humidity |
40-75% |
|||
|
Power |
2500w |
|||
|
Appearance size |
L/W/H:2065/1180/1005 (trolley head adjustable height 175mm) |
|||
|
Data transmission |
TCP/IP network interface |
|||
|
Net weight |
400KG |
|||
|
Wooden box size |
2520x1550x1410mm |
|||
|
Suction system |
750W brand fans |
|||
|
Y-axis |
servo motor drive |
|||
|
Lead screw |
Imported brand double Y screw |
|||
|
Automatic height measurement |
The system drives the automatic height measurement function |
|||
Working process
Import customized patterns, logos or texts into the matching printing software, and adjust printingL.parameters according to production requirements
2. Install professional UV DTF AB film on the feeding shaft of the printer, and calibrate the material feedingposition.
3. Start the printing task, the machine will print patterns on the A fim automatically, and the UV lamp curesink instantly during printing.
4. After printing, the equipment finishes automatic laminating B film in one step, no manual laminationneeded, greatly saving working time.
5. Cut the finished integrated crystal labels, then you can directly transfer the stickers to various products viacold transfer process.
