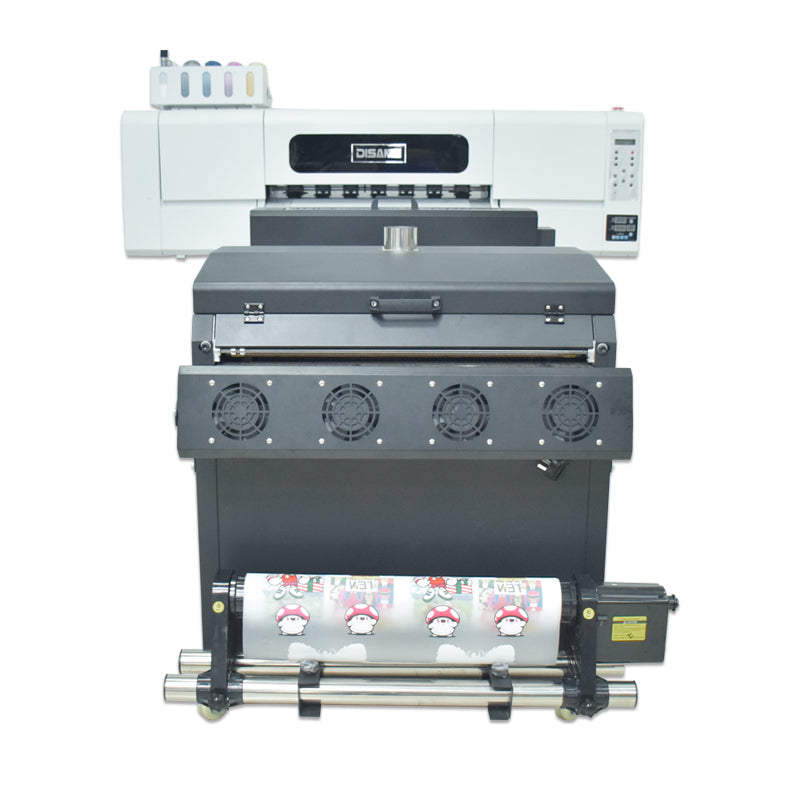

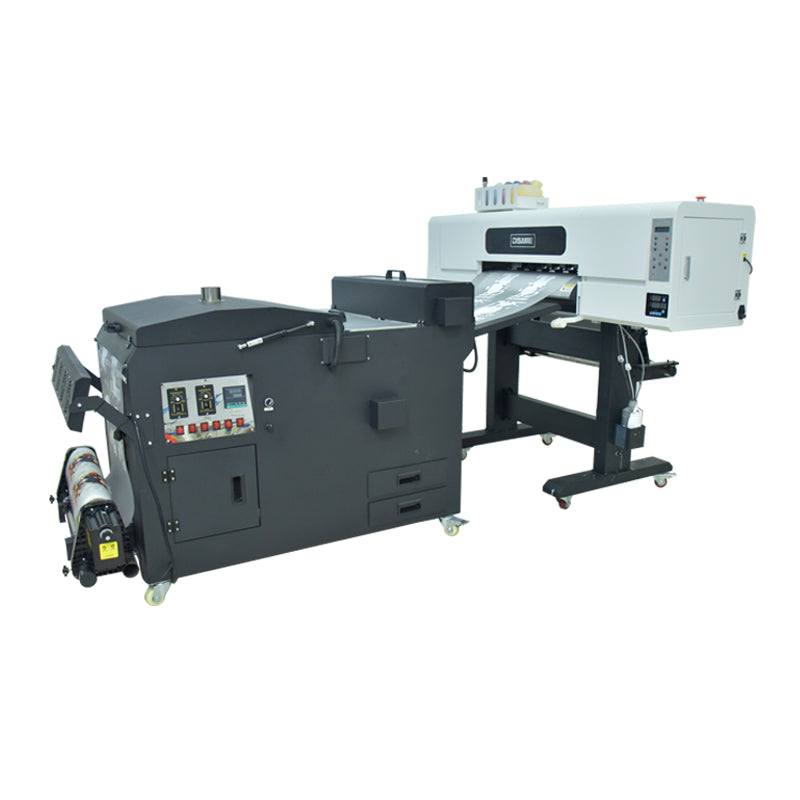

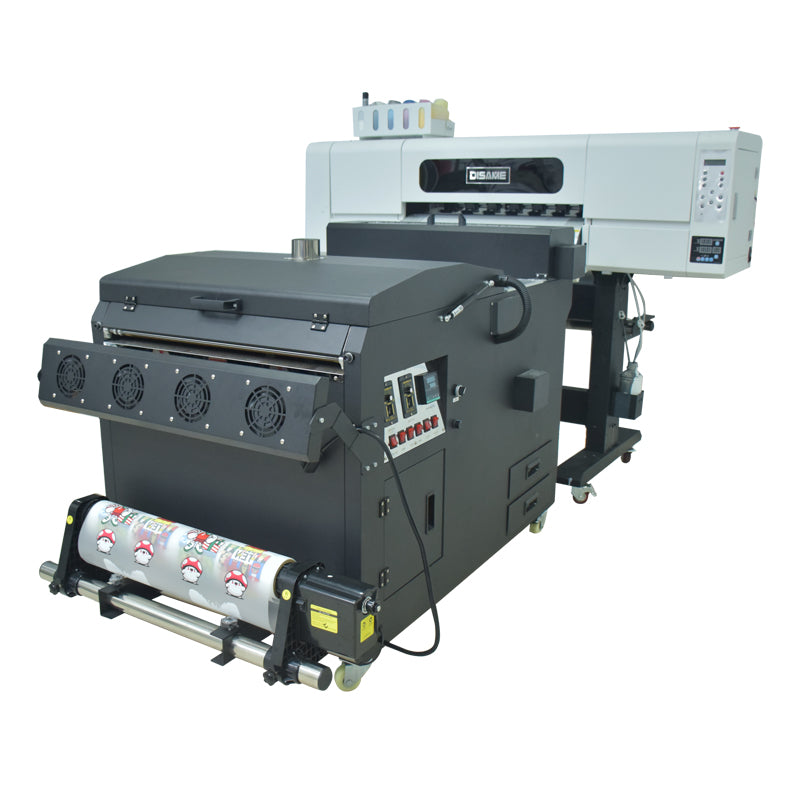

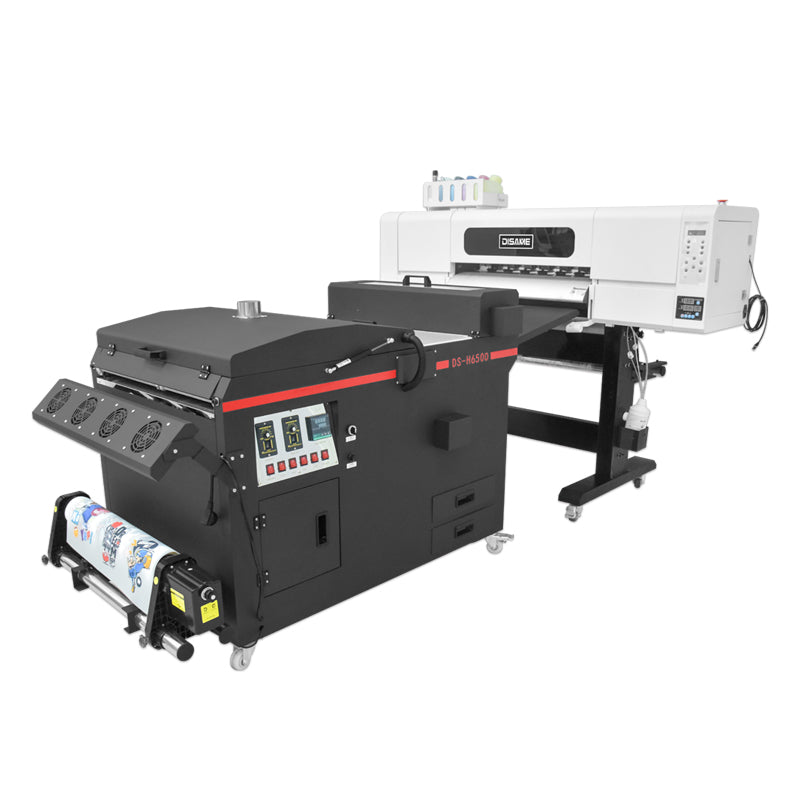

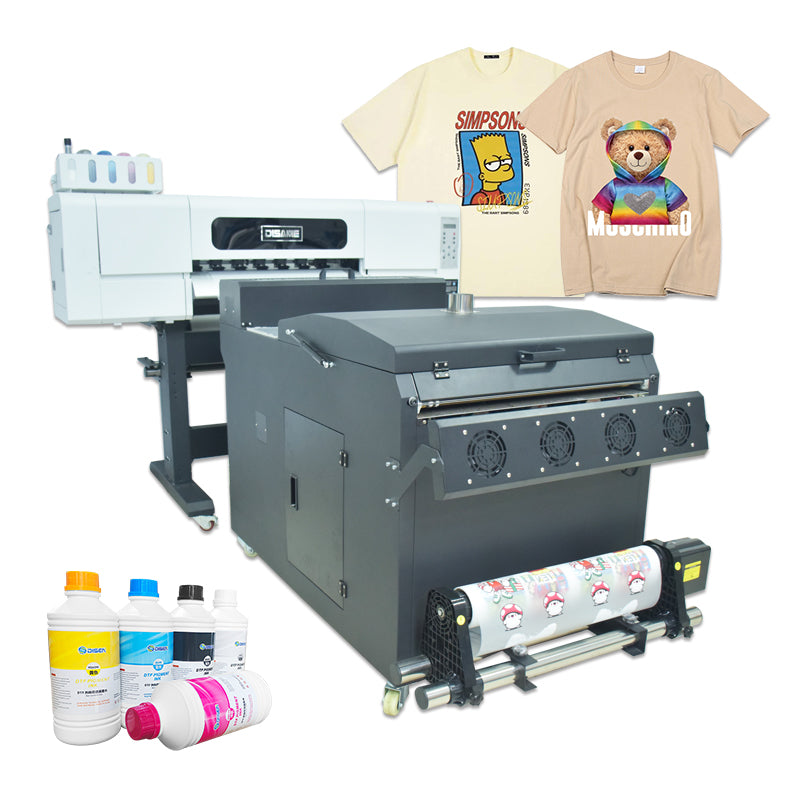

Digital DTF Printer 60cm DTF Transfer PET Film printing
Digital DTF Printer 60cm DTF Transfer PET Film printing
60CM wide heat transfer printer,White ink printing equipment,Can use I3200, XP600 nozzle, can install two nozzles, printing speed, help you increase production efficiency, print quality
Setup: Load 60cm PET film; fill CMYK+white ink tanks; power on the printer and curing unit.
Design Prep: Import artwork to the printer software; adjust size, resolution, and ink settings.
Print: Start printing the design onto the film.
Powder & Cure: Feed printed film into the shaker (apply hot-melt powder) then cure via the heating unit.
Transfer: Use a heat press to apply the cured film to fabric (160-180℃, 15-20s).
Finish: Peel the film after cooling; trim excess edges as needed.
|
Product name |
DSA-MC760DW DTF Printer |
|
Printhead type |
XP600/i3200 |
|
Number of nozzles |
2 piece(optional 3 or 4 piece) |
|
Model description |
70CM wide heat transfer printer |
|
Print orientation |
Bidirectional printing / Unidirectional printing |
|
Nozzle height |
2mm-3mm |
|
Nozzle cleaning |
Fully automatic cleaning, with anti-blocking flash spray function and automatic moisturizing function |
|
Printing speed |
|
|
Production mode |
4pass：12m²/h |
|
Quality mode |
6pass：9m²/h |
|
Precision mode |
8pass: 6m²/h |
|
ink system |
|
|
type |
dtf ink |
|
color |
5（C/M/Y/K/W) |
|
Ink supply method |
Positive pressure continuous ink supply |
|
Capacity |
1500ml |
|
Configure |
|
|
Delivery system |
Standard |
|
Heating system |
Front and rear platform heating |
|
drying system |
Independently controlled cooling fan |
|
Medium |
|
|
Print width |
700mm |
|
print media |
pet printing film |
|
Maximum roll weight |
40Kg |
|
Operation |
|
|
operating language |
Chinese / English |
|
operating system |
WindowsXP/Win7/win10 |
|
Operating environment |
Best environment: 18-25℃, humidity 35%-65%RH |
|
print interface |
USB |
|
printing software |
Maintop/photoprint |
|
Other parameters |
|
|
Power supply |
AC-220V-110V,50Hz/60Hz |
|
Power |
Standby power 32W, maximum power 300W |
|
Box size |
1.3*1*1.2m（L*W*H） |
|
Machine weight |
150kg |
